SOCKET WELD
90° Socket Weld Elbow
Provides 90-degree pipeline direction shift with reinforced wall cross-sections.
Class 3000# / 6000# / 9000# | 1/8" - 4"
High-integrity forged socket weld pipe fittings engineered for leak-free, high-pressure, and high-temperature piping in petrochemical, power, and offshore facilities.
Ankita Forge Industries is a leading manufacturer of high-pressure forged socket weld (SW) pipe fittings. Socket weld connections provide exceptional joint strength and fatigue resistance in piping systems where leakage risk must be zero, particularly for lines carrying volatile hydrocarbons, toxic fluids, or superheated high-pressure steam.
Every socket weld fitting is hot forged from certified bar stock and precision CNC machined to ensure accurate socket bore diameter, depth, and 1/16" expansion gap land as mandated by ASME B16.11 and BS 3799.
Full range of socket weld components available in Carbon Steel, Stainless Steel, and Alloy Steel.
Provides 90-degree pipeline direction shift with reinforced wall cross-sections.

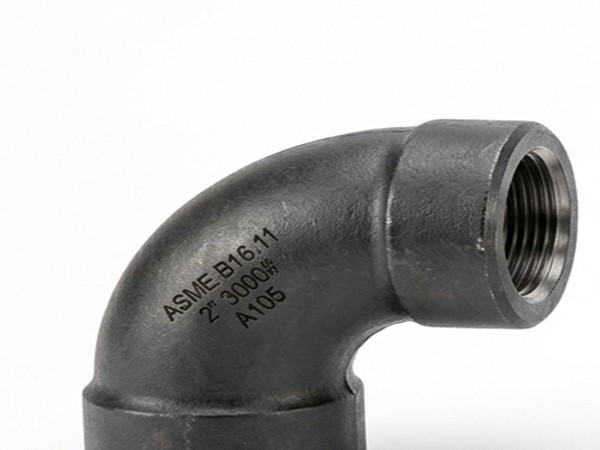

Engineered for smooth 45-degree angular piping transitions with low pressure drop.
Three-way socket branch fitting for 90-degree pipeline manifold connections.
Straight socket connector with central depth stop for securely jointing pipe runs.
Precision ground spherical metal-to-metal seating union for pipeline disconnections.

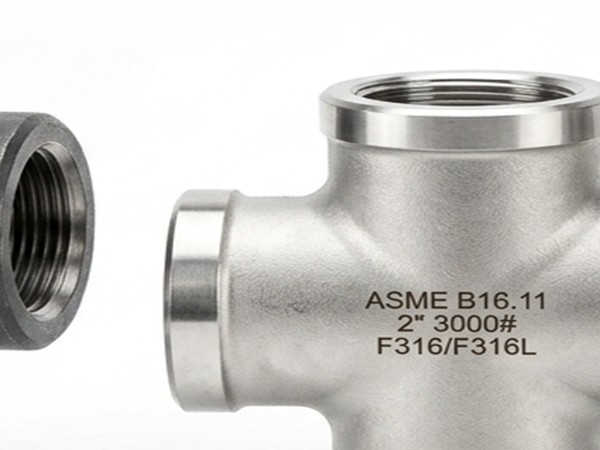

Solid end cap for high-pressure line closures and testing headers.

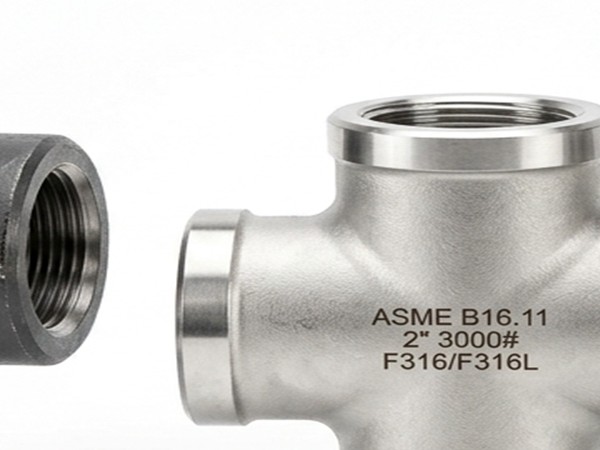

Four-port cross fitting for multi-directional distribution and instrumentation tie-ins.
Single-socket weld fitting for vessel branch taps and instrumentation thermowells.
Standard pressure classes and size configurations for forged socket weld fittings.
| Nominal Pipe Size (NPS) | Class 3000# Socket Dia (mm) | Class 3000# Min Socket Depth | Class 6000# Socket Dia (mm) | Class 6000# Min Socket Depth | Applicable Pipe Schedule |
|---|---|---|---|---|---|
| 1/4" (DN 8) | 14.1 - 14.3 | 9.5 mm | 14.1 - 14.3 | 9.5 mm | Sch 80 / Sch 160 |
| 3/8" (DN 10) | 17.6 - 17.8 | 9.5 mm | 17.6 - 17.8 | 9.5 mm | Sch 80 / Sch 160 |
| 1/2" (DN 15) | 21.8 - 22.2 | 9.5 mm | 21.8 - 22.2 | 9.5 mm | Sch 80 / Sch 160 / XXS |
| 3/4" (DN 20) | 27.2 - 27.6 | 12.5 mm | 27.2 - 27.6 | 12.5 mm | Sch 80 / Sch 160 / XXS |
| 1" (DN 25) | 33.9 - 34.3 | 12.5 mm | 33.9 - 34.3 | 12.5 mm | Sch 80 / Sch 160 / XXS |
| 1-1/2" (DN 40) | 48.8 - 49.3 | 12.5 mm | 48.8 - 49.3 | 12.5 mm | Sch 80 / Sch 160 / XXS |
| 2" (DN 50) | 61.2 - 61.7 | 16.0 mm | 61.2 - 61.7 | 16.0 mm | Sch 80 / Sch 160 / XXS |
| 3" (DN 80) | 89.9 - 90.7 | 16.0 mm | 89.9 - 90.7 | 19.0 mm | Sch 80 / Sch 160 / XXS |
| 4" (DN 100) | 115.4 - 116.3 | 19.0 mm | 115.4 - 116.3 | 22.0 mm | Sch 80 / Sch 160 / XXS |
